Can supply power to network surveillance cameras that without PoE function
8*10/100M auto-sensing RJ45 ports + 2*Gigabit Combo TP/SFP Ports
Supports port auto-flip (Auto MDI/ MDIX)
Uplink port: 5.6Gbps LC fiber interface
Total PoE power: 130W.
Maximum power per port: 30W
Adopts store-and-forward architecture
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve
wire-speed
Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall
Built-in 1U rack power supply series, easy to place it into standard mounting brackets
فرصت خرید امروز
رایگان
ارسال اکسپرس به آدرس شما
2 تا 3 روز
سراسر ایران
اطلاعات بیشتر

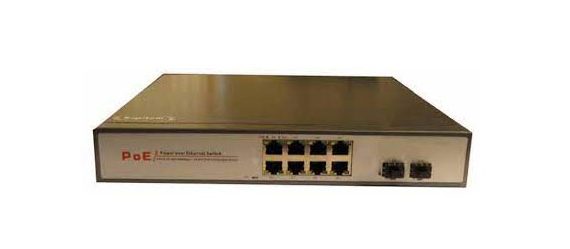

سوئیچ شبکه PoE سپیتام 8 پورت PS208E-DC یک نقطه شبکه برای منبع تغذیه و انتقال داده فراهم می کند. 8 پورت اترنت را می توان به سرعت با 10/100 مگابیت در ثانیه متصل کرد و پورت uplink فیبر 8.8Gbps است. از جمله پورت های 1-8 می توانند استاندارد IEEE802.3af / در منبع تغذیه را فراهم کنند. Sepitam-PS208E-DC دارای طراحی ساده و قابل اعتماد است ، شناسایی خودکار نیازهای PoE ، دوبلکس و سرعت بالا. این گزینه ایده آل برای است. کسانی که می خواهند یک شبکه تجاری کوچک و شبکه خانگی مستقر کنند که از نقطه دسترسی بی سیم (AP) استفاده می کنند. این سوئیچ از ویژگی هایی از قبیل مصرف برق در آن 120 وات ، ولتاژ خروجی 100 تا 240 ولت AC با فرکانس 50/60 هرتز ، 2 مگابایت بافر ، پهنای باند 5.6 گیگابیت بر ثانیه ، منبع تغذیه با قابلیت پی او ایی 130 وات و قابلیت تنظیم خودکار MDI / MDIX برخوردار است. این سوئیچ در ابعاد 270x181x44.6 میلیمتر و وزن 1.6 کیلوگرم ساخته شده و در بازار تجهیزات شبکه ارائه گردیده است.
مدل |
PS208E-DC |
وزن | 1.6 کیلوگرم |
بافر مموری | 4 مگابایت |
کل پورت ها | عداد 9 |
پورت | 9×10/100Mbps RJ45, 2xGigabit Combo |
ولتاژ ورودی سوئیچ شبکه سپیتام | 100 تا 240 ولت AC با فرکانس 50/60 هرتز |
نشانگر LED | برای نمایش وضعیت Power Supply,Every Port: Connecting, PoE Working Status |
منبع تغذیه | با قابلیت پی او ایی 130 وات |
نشانگر LED | برای نمایش وضعیت Power, PoE Maximum Power |
دمای عملکرد | -20 تا 55 درجه سانتیگراد |
ابعاد | 270x181x44.6 میلیمتر |
برای مشاهده محصولات دیگر سایت ما اینجا کلیک کنید .
برای مشاهده محصولات متنوع تر به سایت NKTECH مراجعه نمایید .
برای مشاهده محصولات برند LAFAND به سایت لافند مراجعه نمایید .
switch provides a network point for power supply and data transmission.
All the 8 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 8.8Gbps fiber
interface, among which 1-8 ports can provide standard IEEE802.3af/at power supply. Due the advanced
self-sensing algorithm supply power for IEEE802.3af/at terminal unit, there is no need to worry about
damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when
PoE devices are not connected. In short, The Sepitam-PS208E-DC features simple and reliable design,
automatic identification PoE requirements, duplex and high-speed.
requirements, duplex and high-speed.
This cost-effective Sepitam-PS208E-DC provide network layout need to simplify wireless access point
(AP) and IP-based surveillance cameras network cameras in order to install in commercial network and
home network. The devices far away from power socket are very suitable for hanging on the wall or
ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for
those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for
those want to deploy a small commercial network and home network that use wireless access point (AP)
and IP-based surveillance cameras
