8 PoE ports support power over Ethernet for Power Devices, Support IEEE 802.3af standard
guaranty per port
Managed POE+ Switch with 8x 10/100/1000Base-T ports, 2x gigabit SFP slots, and 1 console port
L2+ features provide better manageability, security, QoS, and performance
Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP
Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs
etc
Support spanning tree STP(802.1D) and RSTP(802.1W)
Support enhanced management through WEB, CLI, TELNET, SSH, SNMP
All gigabit design, 8x gigabit Ethernet RJ45 ports with Auto Uplink™ , 1x console port, and 2x
gigabit SFP slots
G.8032, support <50ms industrial quick ring protection
فرصت خرید امروز
رایگان
ارسال اکسپرس به آدرس شما
2 تا 3 روز
سراسر ایران
اطلاعات بیشتر

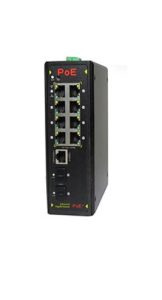

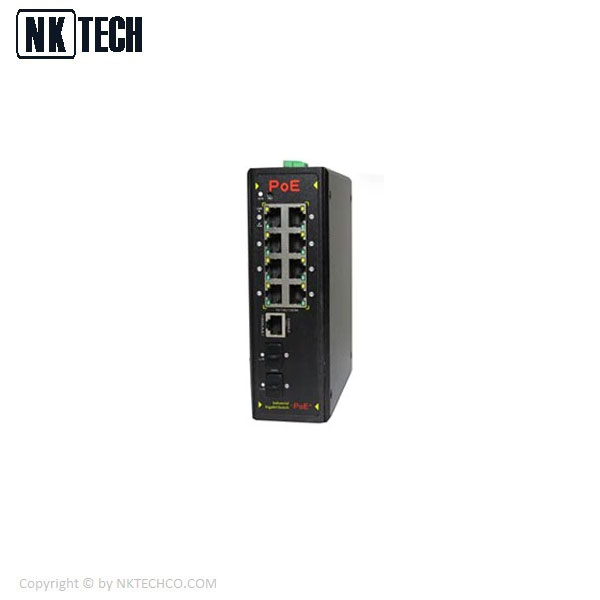

سوئیچ شبکه PoE سپیتام 8 پورت PI208G-DFM دارای یک پورت Console، یک پورت Gigabit SFP و هشت پورت 10/100/1000Base-T می باشد که با پهنای باند 20 گیگابیت بر ثانیه داده های شبکه را انتقال می دهد. این سوئیچ از پروتکل های WEB ,CLI ,TELNET, SSH ,SNMP پشتیبانی میکند همچنین از استاندارد IEEE802.3af برخوردار است. این سوئیچ از ویژگی هایی همچون پشتیبانی از قابلیت های 802.1Q VLAN ,Mirroring ,Port isolation ,IGMP Snooping ,DHCP Snooping ,LLDP ، استفاده از Military-Grade Chip با قابلیت فوق پایدار ، مقاوم در برابر ارتعاشات مغناطیسی ، دارای قابلیت ذخیره انرژی و محافظت محیطی و طراحی Din Rail جهت استفاده در رکهای صنعتی بهره می برد. این سوئیچ در ابعاد 165x145x45 میلیمتر و وزن 1 کیلوگرم ساخته شده و در بازار تجهیزات شبکه ارائه گردیده است.
مدل |
PI208G-DFM |
وزن | 1 کیلوگرم |
دمای عملکرد | -40 تا 80 درجه سانتیگراد |
کل پورت ها | عداد 8 |
پورت | 8×10/100/1000Base-T, 2xGigabit SFP slots, 1xConsole |
ولتاژ ورودی سوئیچ شبکه سپیتام | 48 ولت DC با جریان 2.5 آمپر |
بافر | 4 مگابایت |
منبع تغذیه | با قابلیت پی او ایی 15.4 وات |
نشانگر LED | برای نمایش وضعیت Left: LINK/ACT, right: POE |
پهنای باند | 20 گیگابیت بر ثانیه |
ابعاد | 165x145x45 میلیمتر |
برای مشاهده محصولات دیگر سایت ما اینجا کلیک کنید .
برای مشاهده محصولات متنوع تر به سایت NKTECH مراجعه نمایید .
This Industrial Gigabit smart L2+ PoE switch prepare a field that power and data can
feed from a single point, using Power over Ethernet (PoE) over a single cable. One
eight Gigabit Ethernet ports and one console port it prepared any 10/100/1000
Mbps ,all ports can supply industry-standard IEEE 802.3af power for every POE standard devices. It provides the ideal combination of affordability and capabilities for entry
level networking of industrial, enterprise application which demands industrial,
surveillance, IP Phone, IP Camera or Wireless applications, thus helps you create a
more efficient workforce.
Regards to using advanced auto-sensing algorithm the Sepitam-PI208G-DFM gives
power only to IEEE802.3af front-end devices, so don’t worry about connecting PoE or
non-PoE devices to this feeder. Additionally, this good gives up the power when PoE
devices are disconnected. Intelligently, this manageable PoE Sepitam-PI208G-DFM
can recognized automatically PoE demands of devices, speed, duplex, and cable
type using Auto Uplink™.
Sepitam-PI208G-DFM made by high quality of components were rigorous
screened, have superior performance in stability, environmental adaptability. It can
work normally in very cold environment to very hot from -40̊c to +75 ̊c. The product
planned in a way of better resistance and ability to corrosion and electromagnetic
interference. Power input also made a suitable and reliable types of power, to get more
powerful suitability to environment
