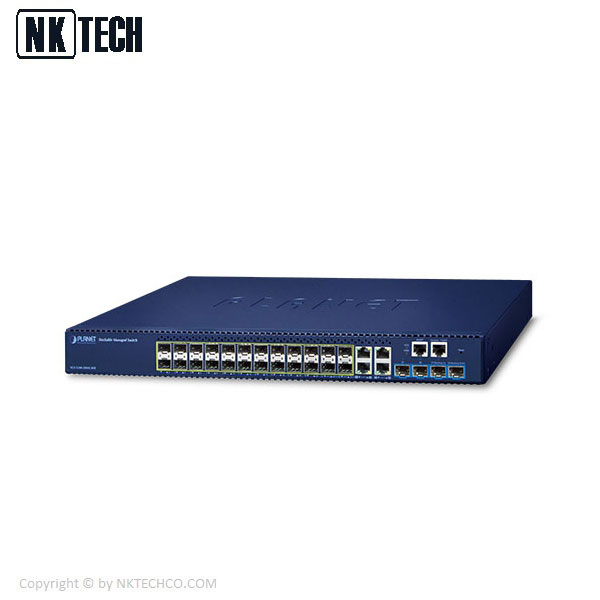

PLANET SGS-5240-20S4C4XR is a Layer 2+ Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing with 10Gbps uplink interfaces delivered in a rugged, strong case.
فرصت خرید امروز
رایگان
ارسال اکسپرس به آدرس شما
2 تا 3 روز
سراسر ایران
اطلاعات بیشتر
سوئیچ شبکه پلنت مدل SGS-5240-20S4C4XR دارای 4 پورت 10/100/1000BASE-T ، 24 پورت 1000BASE-SX/LX/BX SFP و 4 پورت 10 گیگ +SFP می باشد. این سوئیچ داده های شبکه را با حافظه رم 512 مگابایت و فلش 64 مگابایت ذخیره می کند. این سوئیچ در ابعاد 440x 280 x 44 mm و وزن 3.3 کیلوگرم ساخته شده و در بازار تجهیزات شبکه ارائه گردیده است که با داشتن مک آدرس 16K از 16 هزار کاربر پشتیبانی می کند. سری SGS-5240 به شرکت ها ، ارائه دهندگان خدمات و مخابرات کنترل انعطاف پذیری تراکم پورت ، لینک و عملکرد استک سوئیچ را می دهد. سری SGS-5240 می تواند به عنوان یک حلقه برای افزونگی متصل شود و اطمینان حاصل کند که حتی در صورت خرابی یک سوئیچ در استک ، یکپارچگی داده ها حفظ می شود. سری SGS-5240 که به عنوان سوئیچ لایه توزیع یا تجمع برای شبکه های بزرگ قرار گرفته است ، از عملکرد انباشته IP پشتیبانی می کند که به مدیران شبکه کمک می کند تا به جای اتصال و تنظیم هر واحد از طریق یک آدرس IP ، حداکثر 16 سوئیچ را در همان سری از طریق یک آدرس IP پیکربندی کنند.
مشخصات سخت افزار |
|
---|---|
10/100/1000BASE-T RJ45 Ports | 4, shared with Port-21 to Port-24 |
1000BASE-X SFP Slots | 24 1000BASE-SX/LX/BX SFP interfaces Compatible with 100BASE-FX SFP transceiver |
10GBASE-X SFP+ Slots | 4 10GBASE-SR/LR SFP+ interfaces Compatible with 1000BASE-SX/LX/BX SFP transceiver |
کنسول | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
CPU | ARM A9 800MHz |
رم | 512Mbytes |
حافظه فلش | 64Mbytes |
ابعاد (W x D x H) | 440 x 280 x 44 mm |
وزن | 3.3 kg |
مصرف برق | 43W/146.72 BTU |
برق مورد نیاز – برق | AC 100~240V, 50/60Hz |
برق مورد نیاز – DC | DC 36~72V, 2.5A max. |
Fan | 2 |
Switching |
|
Switch معماری | Store-and-forward |
Switch سرعت | 128Gbps/ non-blocking |
Switch توان | 95.23Mpps |
Address جدول | 16K MAC address table with auto learning function |
ARP جدول | 1024 |
ACL جدول | 900 |
بافر داده به اشتراک گذاشته شده | 1.5MB |
قاب جامبو | 9KB |
کنترل جریان | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
توابع لایه 3 |
|
IP رابط های | Max. 32 VLAN interfaces |
جدول مسیریابی | IPv4 256 entries IPv6 128 entries |
پروتکل های مسیریابی | IPv4 hardware static routing IPv6 hardware static routing |
توابع لایه 2 |
|
پیکربندی پورت | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port loopback detect |
Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
VLAN | IEEE 802.1Q tagged based VLAN, up to 4K VLAN groups IEEE 802.1ad Q-in-Q VLAN stacking/tunneling IEEE 802.1v Protocol-based VLAN Port-based VLAN MAC-based VLAN IP Subnet-based VLAN Voice VLAN GVRP for VLAN management, up to 256 VLAN |
Port Mirroring | TX/RX/Both Remote port mirror (RSPAN) Many-to-1 monitor |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU Guard, BPDU filtering and BPDU transparent Root Guard STP-based loopback detection |
چند بخشی | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IGMP Filtering and IGMP Throttling IGMP Proxy reporting IGMP mroute-forward mode Up to 255 multicast groups IPv6 MLD v1/v2 snooping Up to 255 multicast groups Multicast VLAN Register (MVR), supports 5 multicast VLANs |
تجمع لینک | IEEE 802.3ad Ling Aggregation Control Protocol (LACP) Static trunk link aggregation Supports 26 groups with 8 ports per trunk group Up to 80Gbps bandwidth (full duplex mode) Load Balance Algorithm: – Source IP/destination IP/Source + destination IP – Source MAC/destination MAC/Source + destination MAC |
Storm Control | Broadcast/Multicast/Unicast storm control Rate: 64Kbpss-10,000Mbps |
کنترل پهنای باند | Input/Output/Both Per port bandwidth control Gigabit port: 64Kbpss-1,000Mbps 10Gigabit port: 64Kbpss-10,000Mbps |
QoS | 8 priority queues on all switch ports Scheduling for priority queues – Weighted Round Robin (WRR) – Strict priority – Hybrid (DRR/WRR + strict) Traffic classification: – IEEE 802.1p CoS/DSCP/IP Precedence – VLAN ID – ACL – Policy-based ingress and egress QoS |
Ring | ITUT G.8032 ERPS v1 and v2 |
توابع امنیتی |
|
لیست کنترل دسترسی | Supports Standard and Expanded ACL – IP-based ACL – MAC-based ACL – ARP ACL – Time-based ACL ACL based on: – MAC Address – IPv4/IPv6 IP Address – Ethertype – Protocol-number/UDP – sport/dport – DSCP – 802.1p Priority Up to 900 entries |
امنیت | Port security Supports static MAC + port binding Defend against DoS or TCP attacks DHCP Snooping, DHCP Option 82 IP source guard Dynamic ARP inspection Command line authority control based on user levels |
AAA | RADIUS client TACACS+ client |
کنترل دسترسی شبکه | IEEE 802.1x port-based network access control MAC-based authentication Web authentication Local/RADIUS authentication |
توابع مدیریت |
|
پیکربندی سیستم | Console and Telnet Web browser SNMP v1, v2c |
رابط های مدیریت امن | IPv4/IPv6 SSHv2, SSLv3, SNMPv3 Maximum 8 sessions for SSH and telnet connection |
مدیریت سیستم | IPv4 and IPv6 dual stack management SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups Firmware upgrade by HTTP/TFTP/FTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP/FTP protocol Supports dual images and multiple configuration files Supports IEEE 802.1ab LLDP protocol NTP/SNTP client RADIUS authentication for IPv4/IPv6 login user name and password Security IP safety net management function: avoid unlawful landing at nonrestrictive area |
مدیریت رویداد | Remote Syslog System log SMTP |
IP Clustering | 16 members |
IP Clustering Compatibility List | SGS-5240-24T4X SGS-5240-24P4X SGS-5240-20S4C4XR SGS-5240-48T4X |
انباشته سخت افزار | 6 members max. Last 2 10G SFP+ slots are functioned as Stacking Up and Down interfaces |
SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
انطباق استاندارد |
|
انطباق با مقررات | FCC Part 15 Class A, CE |
انطباق استاندارد | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking/tunneling IEEE 802.1v Protocol-based VLAN IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
محیط |
|
عملیاتی | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
ذخیره سازی | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
